Types of hydraulic filter cartridges

2025-02-13

Hydraulic filter cartridges are essential components in hydraulic systems, ensuring the cleanliness and efficiency of the fluid by removing contaminants. Here are several types of hydraulic filter cartridges:

  1. Sintered Metal Cartridges:

    • Made from porous metal, often stainless steel.
    • High strength and durability.
    • Suitable for high-pressure applications.

  2. Paper Cartridges:

    • Made from cellulose or synthetic fibers.
    • Fine filtration capability.
    • Commonly used in low to medium pressure applications.

  3. Mesh Cartridges:

    • Consist of a mesh screen made from metal or synthetic fibers.
    • Used for coarse filtration to protect other filters.
    • Easy to clean and reusable.

  4. Wire Cone Cartridges:

    • Made from a wire mesh cone.
    • Designed for high flow rates and lower pressure drops.
    • Often used in industrial hydraulic systems.

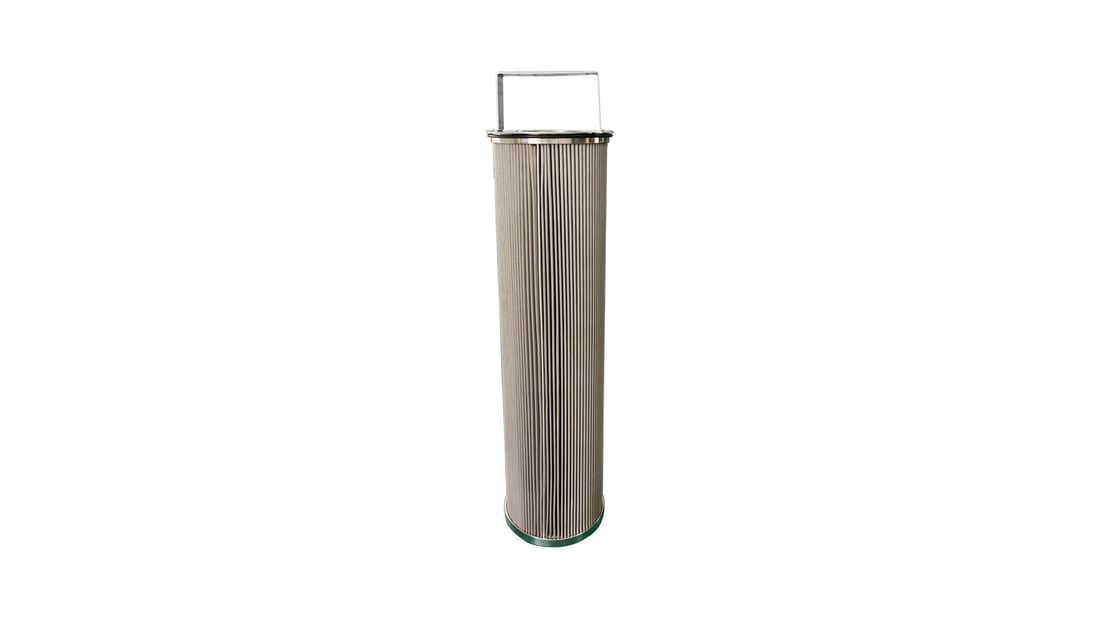

  5. Pleated Cartridges:

    • Have pleated media which increases surface area and dirt-holding capacity.
    • Provide higher filtration efficiency.
    • Suitable for applications requiring fine filtration.

  6. Activated Carbon Cartridges:

    • Incorporate activated carbon to remove chemical contaminants and odors.
    • Often used in conjunction with other filter types.
    • Effective in adsorbing oils and resins.

  7. Composite Cartridges:

    • Combine multiple materials (e.g., paper, metal) to optimize performance.
    • Offer versatility in handling different types of contaminants.

  8. Magnetic Cartridges:

    • Use magnets to capture ferrous particles.
    • Often used as a pre-filter to protect other types of filters.

  9. Glass Fiber Cartridges:

    • Made from glass microfibers.
    • Provide very fine filtration.
    • Used in applications requiring high levels of cleanliness.

  10. Ceramic Cartridges:

    • Made from ceramic materials.
    • High temperature and chemical resistance.
    • Suitable for specialized applications where other materials would degrade.

Each type has its unique advantages and is selected based on the specific requirements of the hydraulic system, including the level of filtration needed, pressure ratings, and compatibility with the hydraulic fluid.
