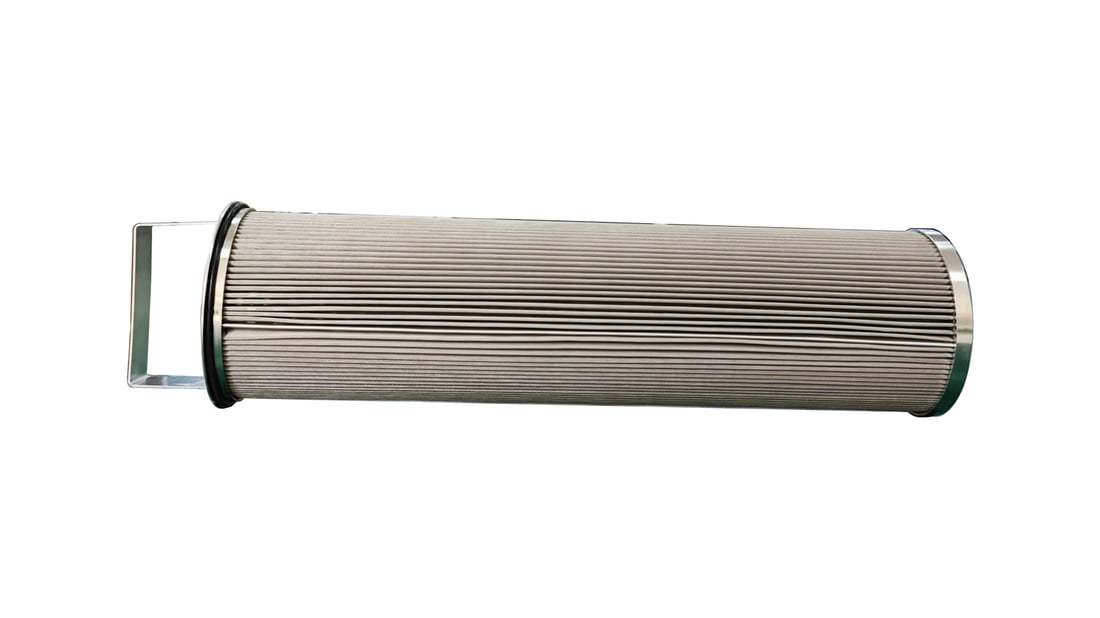

A suction oil filter element is a critical component in hydraulic and lubrication systems, designed to remove contaminants from the oil before it enters the pump or other critical components. The primary function of this filter is to protect these components from wear and damage caused by particulate matter, thus ensuring the longevity and efficiency of the system. Here's a detailed explanation of its working principle:
1. Filter Media
The core of a suction oil filter element is its filter media, which can be made from various materials such as paper, fiberglass, metal mesh, or a combination of these. The choice of media depends on the required filtration efficiency and the specific application.
2. Filtration Process
- Inlet Port: Oil enters the filter through the inlet port. This oil may contain contaminants like dirt, metal shavings, and other particles that could potentially harm the system.
- Filter Media: As the oil passes through the filter media, contaminants are trapped within the media while the clean oil passes through. The filter media is designed with micron-sized pores that effectively capture particles larger than the specified micron rating of the filter.
- Outlet Port: The filtered oil then exits through the outlet port and is directed to the pump or other components that require clean oil for proper operation.
3. Suction Action
In many systems, especially those involving hydraulic pumps, the filter is placed at the suction side of the pump. The pump creates a suction force that pulls the oil through the filter element. This ensures that only clean oil reaches the pump, reducing the risk of cavitation and wear on pump components.
4. Bypass Valve (Optional)
Some suction oil filters are equipped with a bypass valve. This safety feature is designed to open if the filter becomes clogged and the pressure drop exceeds a certain threshold. When this happens, the bypass valve allows the oil to flow directly to the pump without passing through the filter, preventing damage to the pump due to oil starvation.
5. Replacement Indicator (Optional)
Advanced suction oil filters may include a replacement indicator, such as a pressure gauge or a visual indicator, to notify operators when the filter needs to be replaced. This helps maintain optimal system performance and prevents potential damage from a clogged filter.
6. Maintenance
Regular maintenance and replacement of the suction oil filter element are essential to ensure the system's reliability. The frequency of replacement depends on factors like the operating environment, oil cleanliness, and manufacturer recommendations.
Benefits
- Protection of Components: By removing contaminants, the filter extends the life of pumps, valves, and other critical components.
- Improved System Efficiency: Clean oil reduces friction and wear, leading to better overall system performance.
- Reduced Downtime: Preventing contaminant-related damage minimizes unexpected breakdowns and maintenance costs.
In summary, the suction oil filter element works by physically trapping contaminants in its filter media while allowing clean oil to pass through, thereby protecting sensitive components in the system and ensuring smooth operation.
